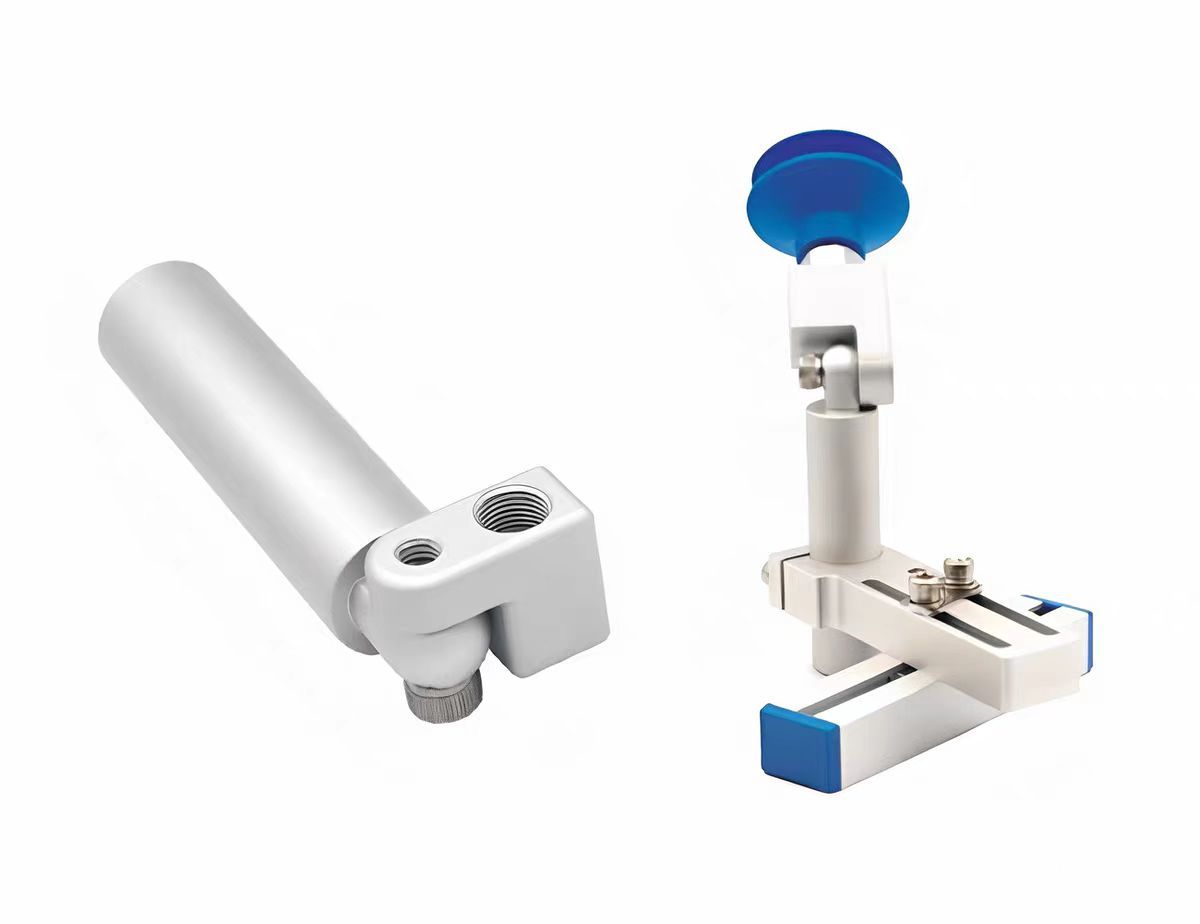

Vacuum suction cup bending arm
The vacuum suction arm is a fixed device that integrates a vacuum suction base and a flexible arm that can be bent freely. Its core feature is to utilize the vacuum suction to provide strong adhesion force, and to achieve unlimited positioning and stepless adjustment through an "elbow tube" with an internal metal skeleton and an external soft material coating. It can be regarded as the "super flexible" version of the suction installation rod, sacrificing some longitudinal rigidity in exchange for unparalleled multi-angle positioning capabilities.
Product Details

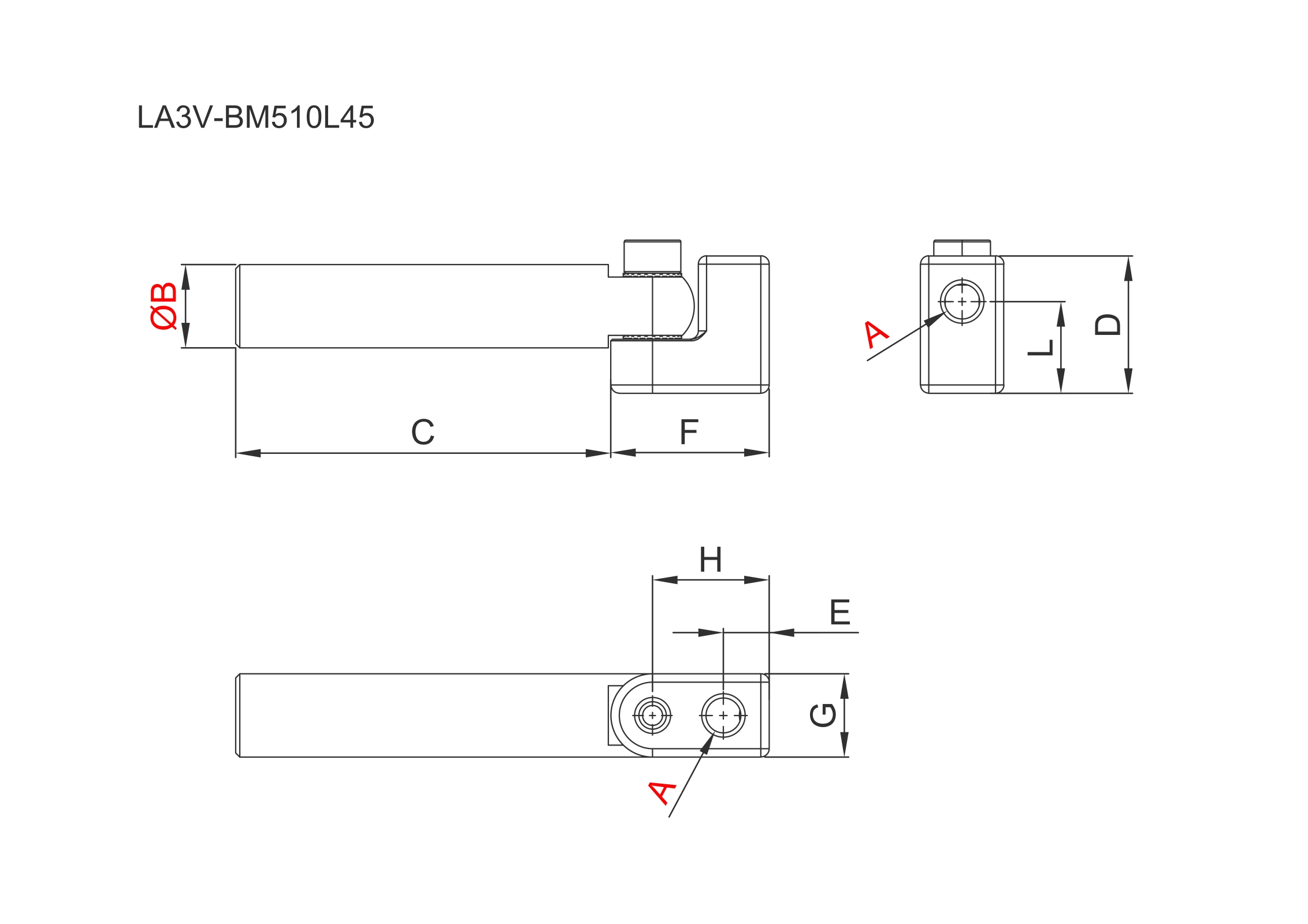

| Model | A(mm) | B(mm) | c(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) | L(mm) | Weight |
|
0
|
M5 | Ø10 | 45 | 16.5 | 5.5 | 19 | 10 | 14 | 11 | 18g |
|
0
|
M5 | Ø10 | 90 | 16.5 | 5.5 | 19 | 10 | 14 | 11 | 27g |
|
0
|
G1/8 | Ø14 | 60 | 22 | 8.5 | 29 | 14 | 22 | 13.5 | 33g |
|
0
|
G1/8 | Ø14 | 120 | 22 | 8.5 | 29 | 14 | 22 | 13.5 | 50g |
|
0
|
G1/8 | Ø20 | 78 | 22 | 8.5 | 29 | 14 | 22 | 13.5 | 60g |
|
0
|
G1/8 | Ø20 | 153 | 22 | 8.5 | 29 | 14 | 22 | 13.5 | 100g |
|
0
|
G1/4 | Ø20 | 75 | 27 | 12 | 38 | 20 | 28 | 15 | 75g |
|
0
|
G1/4 | Ø20 | 150 | 27 | 12 | 38 | 20 | 28 | 15 | 115g |
